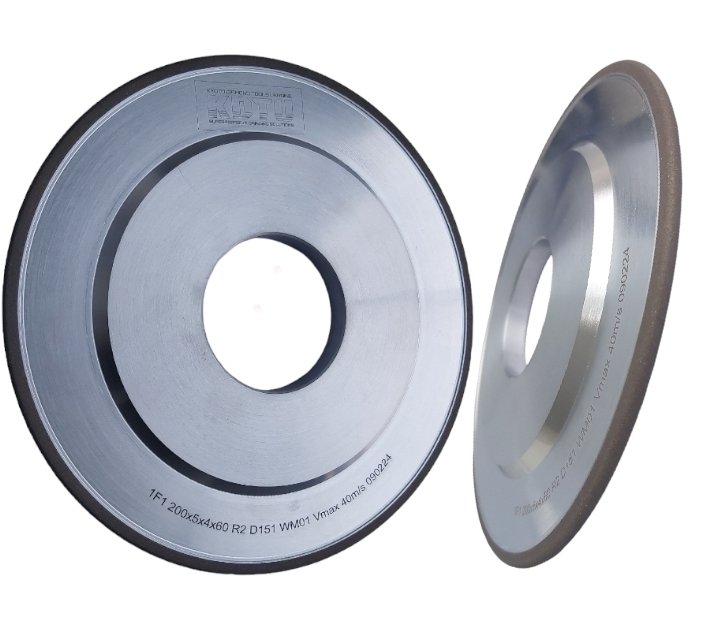

14F1; 1F1 Diamond and CBN radius wheels
Sharpening and profiling of profiled knives of TC and HSS on machines WEINIG Rondamat; AKE AKEMAT U, U4, U6R2, B10; UT.MA AL802, AL804; WRIGHT; WALTER WOODTRONIC NC, WOODTRONIC NC3, WOODTRONIC NC5; STEHLE VARIO 92-1 DIAMOND PROFILE and DIAMOND UNIVERSAL , VARIO 92-2 CBN PROFILE and CBN UNIVERSA. Проточка корпусов дисковых пил и фрез, заточка на станках Businaro, Loroch CNC
TABLE
ORDER SAMPLE
| SHAPE | D * T * W * X * H |
| 14F1 | 200 х 8 х 7 х 3,2 х 32 x R1,6 D126 WH01 |
ANY OTHER SHAPE IS POSSIBLE TO PRODUCE BY REQUEST WITH DIAMOND OR CBN POWDER.
TABLE
GET A CONSULTATION AND ORDER A TOOL

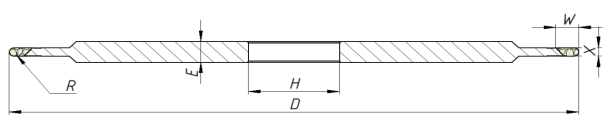

| D mm | W mm | X mm | E mm | H mm | R mm |
|---|---|---|---|---|---|
| 50 | 5 | 2-4 | 5 | according to an order | 1; 1,5; 2 |
| 75 | 5 | 2-4 | 6 | according to an order | 1; 1,5; 2 |
| 100 | 5 | 2-6 | 8 | according to an order | 1; 1,5; 2; 2,5; 3 |
| 125 | 5-8 | 1,3-12 | 6-12 | according to an order | 0,65; 0,8; 1; 1,25; 1,5; 1,6; 2; 2,5; 3; 4; 5; 6 |
| 150 | 5-8 | 1,3-12 | 6-12 | according to an order | 0,65; 0,8; 1; 1,25; 1,5; 1,6; 2; 2,5; 3; 4; 5; 6 |
| 175 | 5-8 | 1,3-12 | 8-12 | according to an order | 0,65; 0,8; 1; 1,25; 1,5; 1,6; 2; 2,5; 3; 4; 5; 6 |
| 200 | 5-8 | 1,3-12 | 8-12 | according to an order | 0,65; 0,8; 1; 1,25; 1,5; 1,6; 2; 2,5; 3; 4; 5; 6 |
| 250 | 5-8 | 1,3-12 | 10-12 | according to an order | 0,65; 0,8; 1; 1,25; 1,5; 1,6; 2; 2,5; 3; 4; 5; 6 |
14F1
