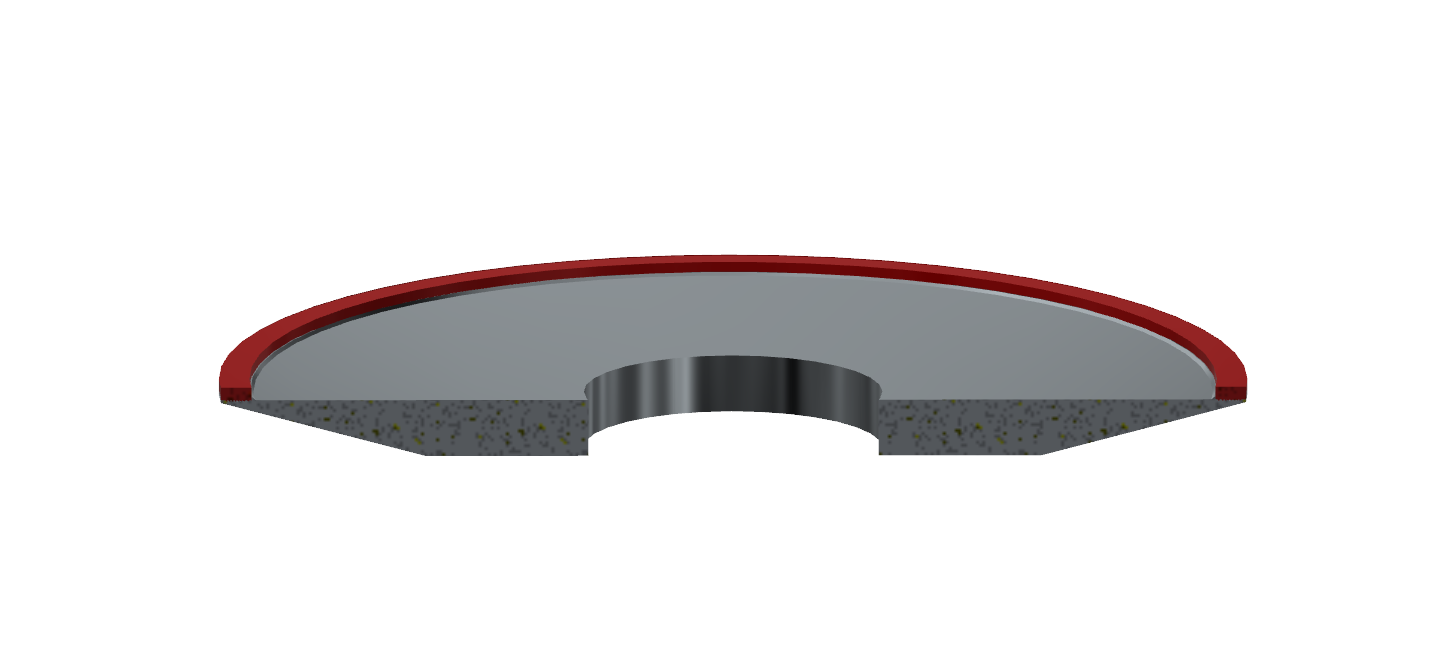

4Π2 Dish shaped grinding wheels
Grinding and sharpening of TC teeth of circalar saws on CNC machines UT.MA AL800, AL800E; VOLLMER-DORNHAN FINIMAT, W11 240 TS; VOLLMER-DORNHAN FINIMAT, GAMMA, BETA, ALPHA; WALTER WOODTRONIC NC; STEHLE S916 DIAMOND UNIVERSAL and CBN UNIVERSAL; SATURN HKSC 600, HKS 600; Rondamat 912
TABLE

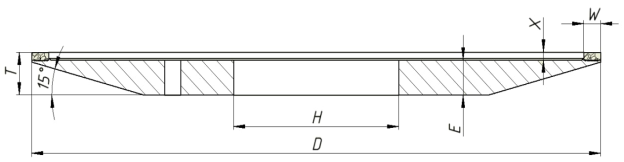

| D mm | W mm | X mm | T mm | E mm | H mm |
| 75 | 3 - 6 | 2 - 5 | 12 - 15 | 9 | by request |
| 100 | 3 - 6 | 2 - 5 | 12 - 15 | 10 | by request |
| 150 | 3 - 6 | 2 - 5 | 12 - 15 | 10 | by request |
| 175 | 3 - 6 | 2 - 5 | 12 - 15 | 10 | by request |
| 200 | 3 - 6 | 2 - 5 | 12 - 15 | 10 | by request |
ORDER SAMPLE
| SHAPE | D * T * W * X * H |
| 4Π2 | 150 Ρ 12 Ρ 3 Ρ 5 Ρ 32 D126 DS01 |
ANY OTHER SHAPE IS POSSIBLE TO PRODUCE BY REQUEST WITH DIAMOND OR CBN POWDER.
TABLE
GET A CONSULTATION AND ORDER A TOOL
Π’ΠΈΠΏ 1
