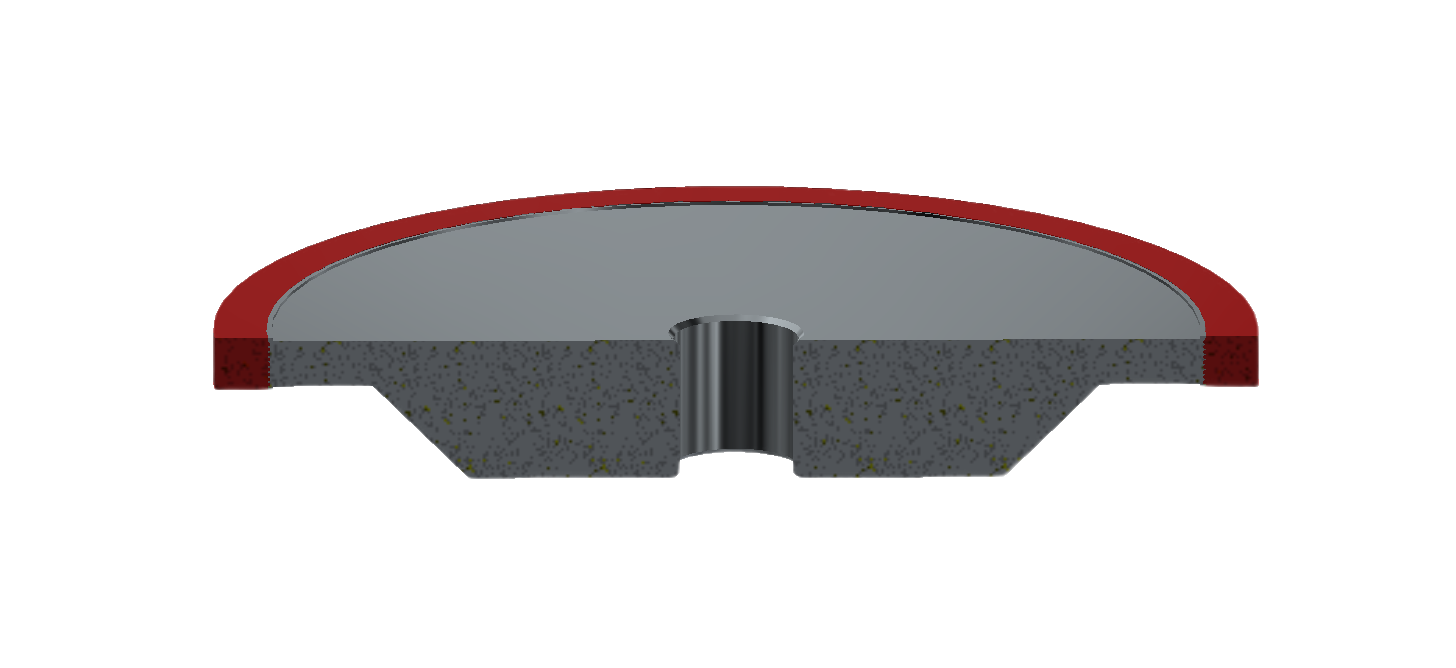

3Π1 Straight profile diamond grinding wheels with one-sided hub
Grinding and sharpening of the tooth sides of the circular saw. Can be used on CNC machines like VOLLMER CHTF, CC CHTF; VOLLMER-DORNHAN DUO S; DUO TS UNILΓPP 11-450 TS MF 600; WIDMA HKS400 FS600 FS100/H FS1001 GRINDING CENTRE; UT.MA AF800, AF600, AF801; Woodtronic; Akemat F also can be used for manual sharpening machines
Table
Order Sample
| SHAPE | D * T * W * X * H |
| 3Π1 | 125 Ρ 13 Ρ 5 Ρ 8 Ρ 32 D126 WS03 |
Any other shape is possible to produce by request with diamond or CBN powder.
Table
get a consultation and order a tool

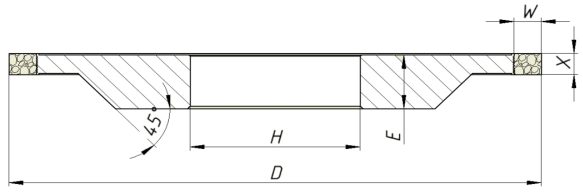

| D mm | W mm | X mm | T mm | E mm | H mm |
|---|---|---|---|---|---|
| 75 | 6 | 4 (2+2) | 13 | 8 | according to an order |
| 100 | 6 | 4 (2+2) | 13 | 8 | according to an order |
| 125 | 6; 8 | 5 (2,5+2,5) | 13 | 9-10 | according to an order |
| 150 | 6; 8 | 6 (3+3) | 15 | 10-11 | according to an order |
| 200 | 6; 8 | 6 (3+3) | 15 | 10-11 | according to an order |
3Π1
