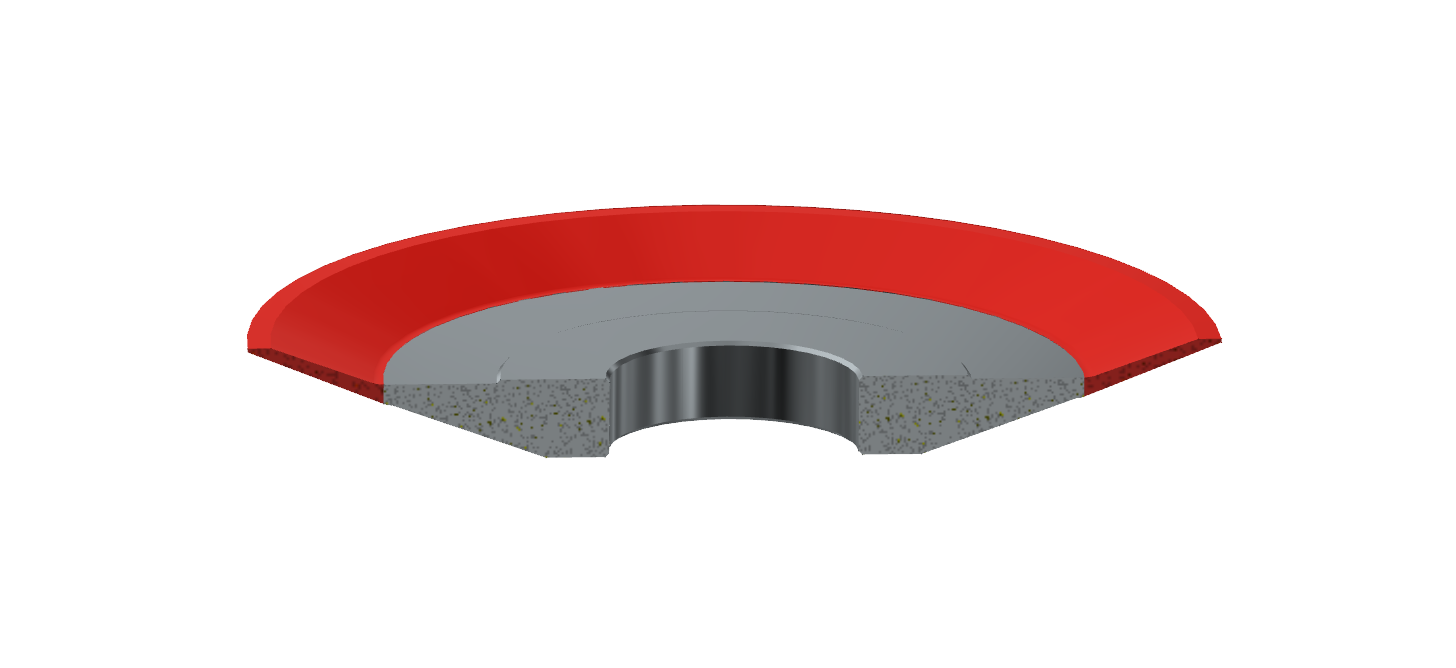

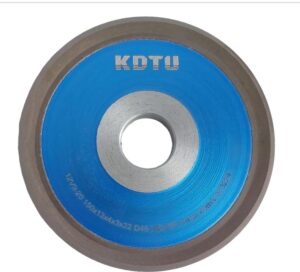

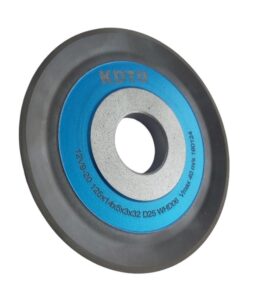

12V9-20/12V9-22 Dish shaped diamond sharpening wheels
Β
Grinding and sharpening of the tooth face of circular saw. Can be used on CNC machines like VOLLMER-BIBERACH Π‘Π₯100, CL, CHC, CP200, CHP, CHD, CHT, CHTS, CHHT; UT.MA; ΠΠΠ; Kaindl; AKE B10, U6R2, AKEMAT F, BU, AW; Walter CNC5; OTOMAT-96 ECO; Kucharczyk; LAKFAM; IRONMAC 600A; Reinforced abrasive layer allows using on manual sharpening machines.
Table
Order Sample
| SHAPE | D * T * W * X * H |
| 12V9-20 | 125 Ρ 15 Ρ 3 Ρ 5 Ρ 32 D46 WH01 |
Any other shape is possible to produce by request with diamond or CBN powder.
Table
get a consultation and order a tool
| D mm | W mm | X mm | T mm | E mm | H mm | Π’ΠΈΠΏ |
|---|---|---|---|---|---|---|
| 75 | 3 | 2,5-5 | 15 | 9-10 | according to an order | 12V9-20 |
| 100 | 3 | 2,5-5 | 15 | 9-10 | according to an order | 12V9-20 |
| 125 | 5 | 2,5-5 | 15 | 9-10 | according to an order | 12V9-20 |
| 150 | 5 | 2,5-5 | 15 | 10-11 | according to an order | 12V9-20 |
| 175 | 3-5 | 2,5-5 | 12-15 | 10-11 | according to an order | 12V9-22 |
| 200 | 5 | 2,5-5 | 15 | 10-11 | according to an order | 12V9-22 |

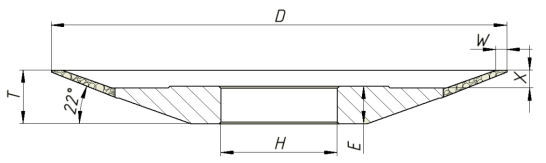

12V9-20

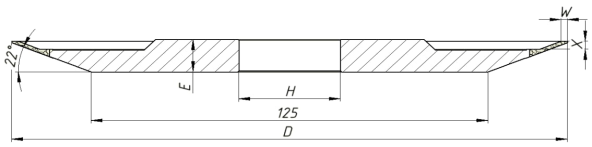

12V9-22
