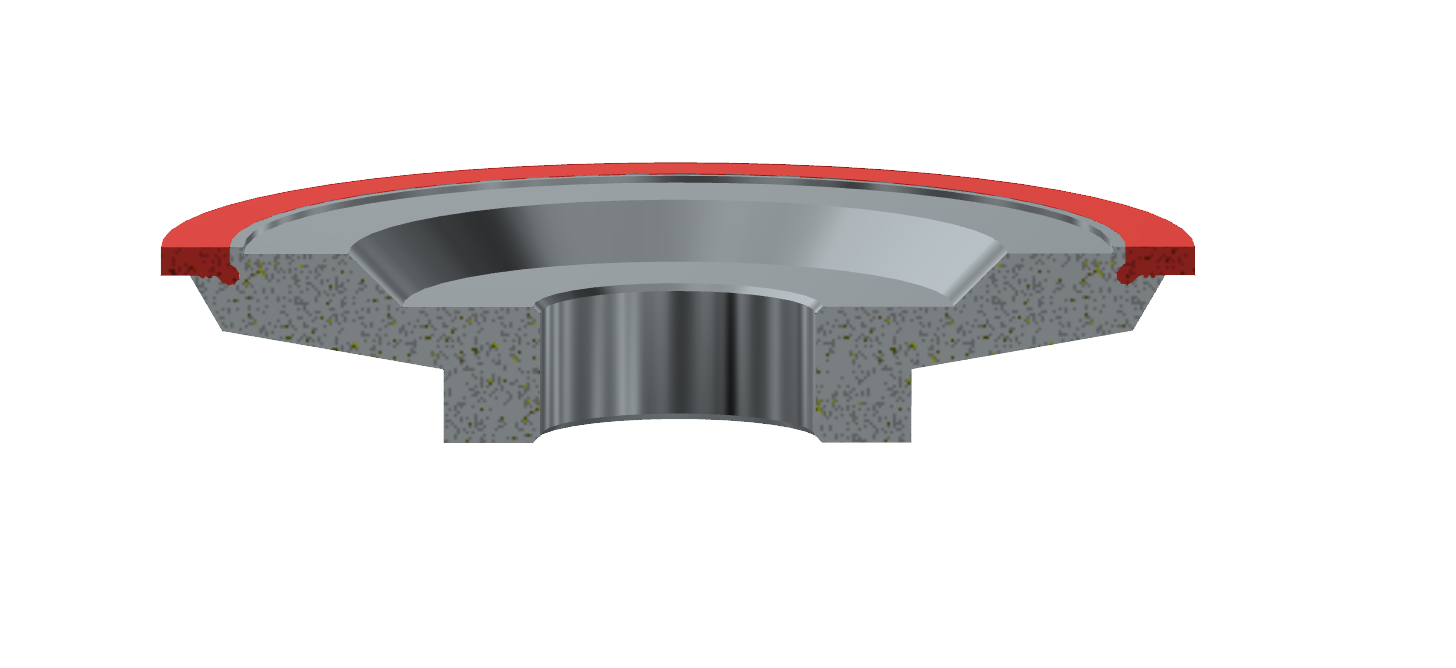

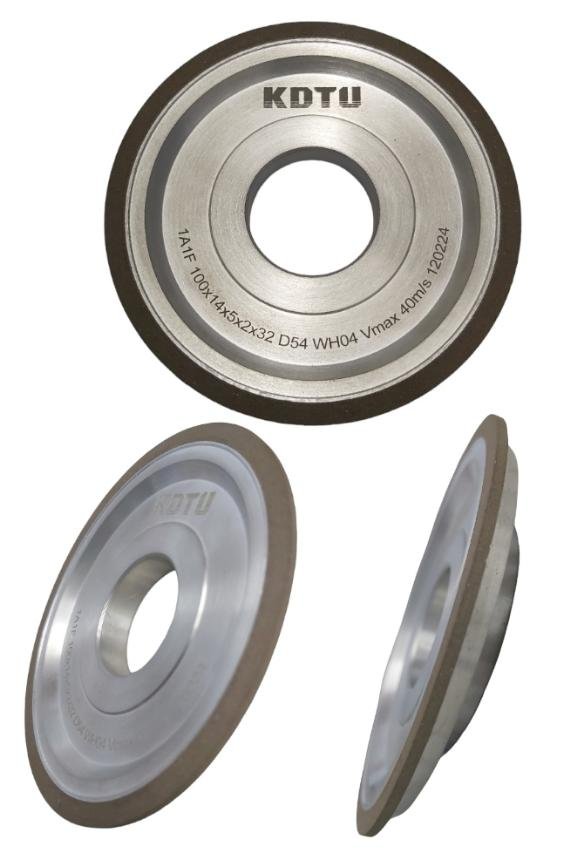

1A1F / Π700 Special grinding wheels of straight shape with recess and rabbet edge
Grinding and sharpening of the tooth sides of circular saw. Can be used on CNC machines like Vollmer CHF 100, 210, 270, DUO S, TS β UNILΓPP II 450 TS, MF 600; WIDMA HKS400, FS600, FS100/H, FS1001, GRINDING CENTRE; AKE AKEMAT DUO F; WALTER WOODTRONIC CNC6F
TABLE

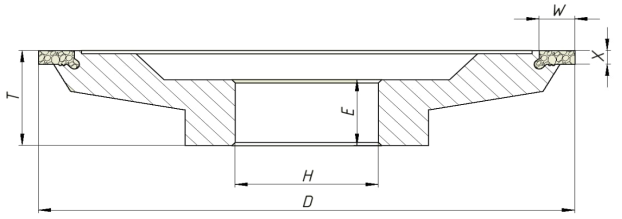

| D mm | W mm | X mm | T mm | E mm | H mm |
| 75 | 5 | 2 | 14 | 10 | by request |
| 100 | 5 | 2 | 14 | 10 | by request |
ORDER SAMPLE
| SHAPE | D * T * W * X * H |
| 1A1F | 75 Ρ 14 Ρ 5 Ρ 2 Ρ 25 D126 WH01 |
ANY OTHER SHAPE IS POSSIBLE TO PRODUCE BY REQUEST WITH DIAMOND OR CBN POWDER.
TABLE
GET A CONSULTATION AND ORDER A TOOL
Π’ΠΈΠΏ 1
Π’ΠΈΠΏ 2
