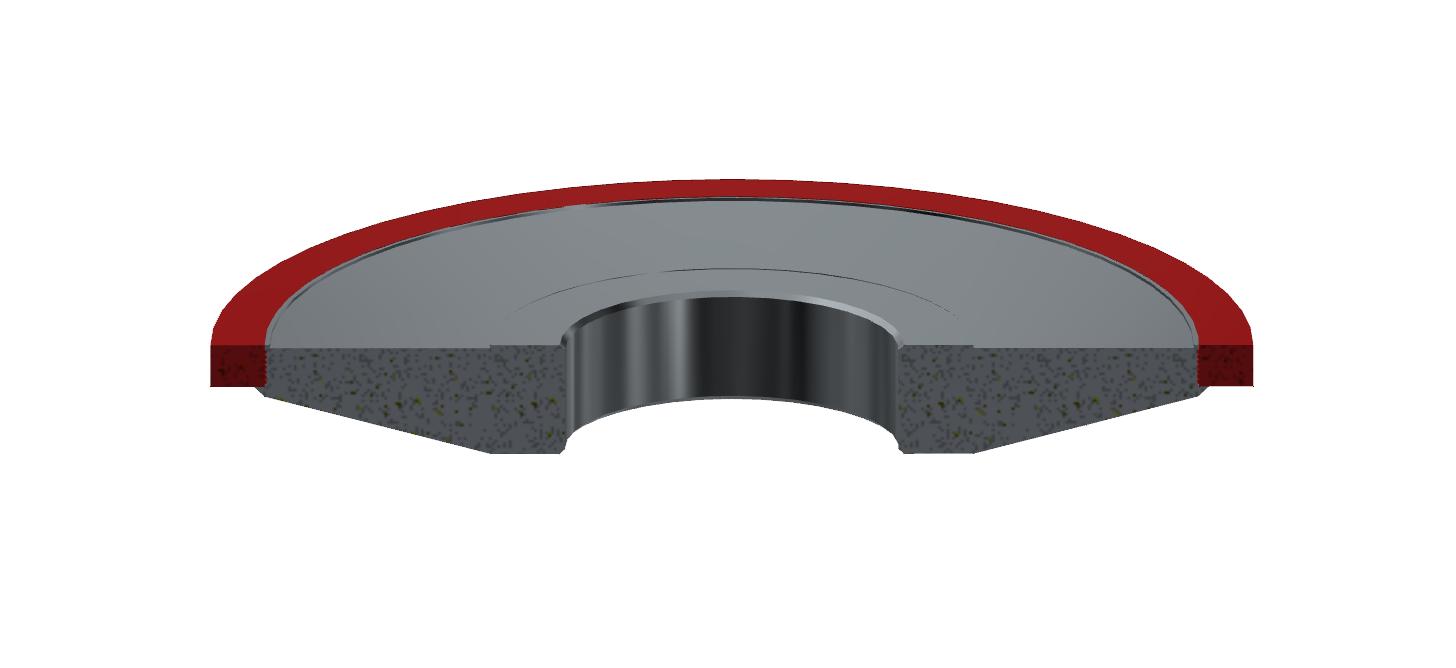

4Π9 Diamond and CBN wheels with straight profile
Grinding and sharpening of the tooth sides of circular saw. Can be used on CNC machines like VOLLMER CHTF, CC CHTF; VOLLMER-DORNHAN DUO S; DUO TS UNILAEPP 11-450 TS MF 600; WIDMA HKS400 FS600 FS100/H FS1001 GRINDING CENTRE; UT.MA AF800, AF600, AF801; Woodtronicand for manual sharpening. Grinding saw body for TC tips. Knives profiling on machines WEINIG Rondamat

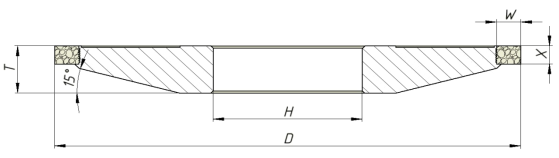

TABLE
| D mm | W mm | X mm | T mm | H mm |
| 75 | 5 | 4 | 11 | by request |
| 100 | 5 | 4 | 11 | by request |
| 125 | 6; 8 | 5 | 12 | by request |
| 150 | 6; 8 | 5 | 12 | by request |
| 200 | 6; 8 | 5 | 12 | by request |
ORDER SAMPLE
| 4Π9 | 100 Ρ 11 Ρ 5 Ρ 4 Ρ 32 D64 WH01 |
ANY OTHER SHAPE IS POSSIBLE TO PRODUCE BY REQUEST WITH DIAMOND OR CBN POWDER.
