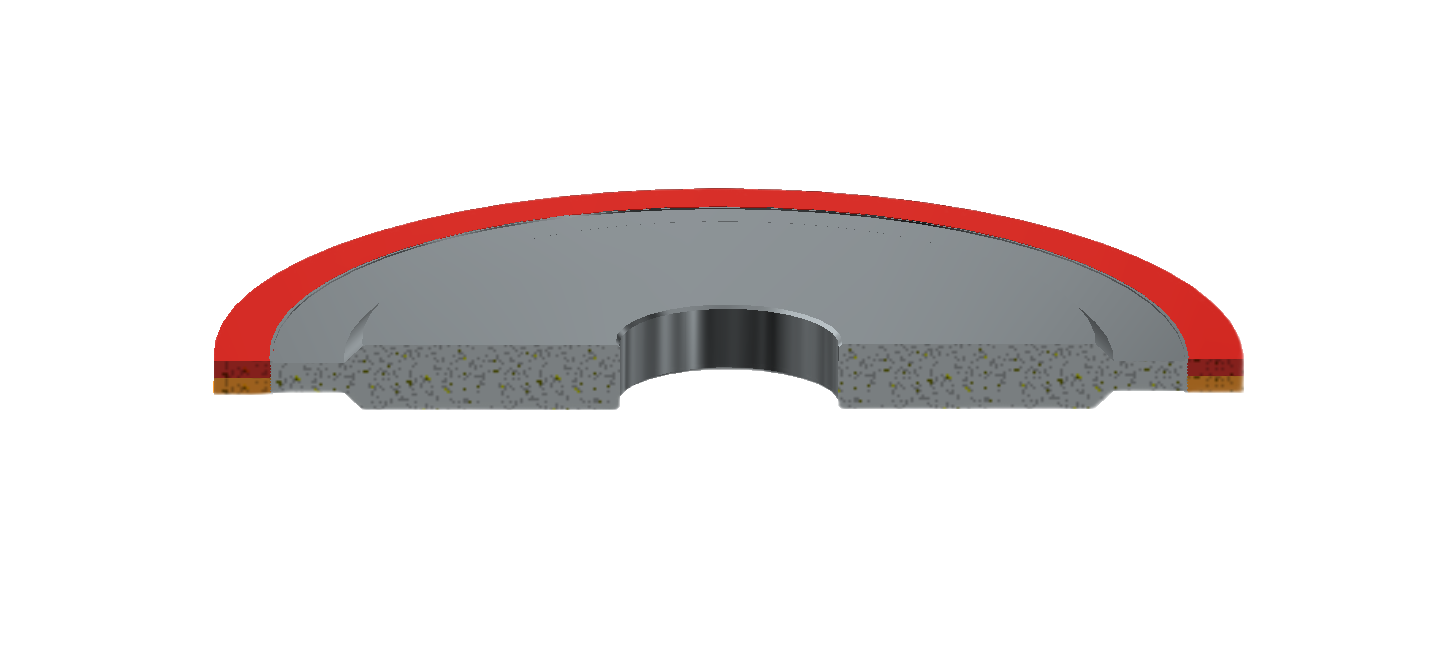

14Π1; 14ΠΠ1 Mono/double-layer diamond and CBN grinding wheels with recess
Grinding and sharpening of the tooth sides of circular saw. Can be used on CNC machines like AKE AKEMAT U, U4, U6R2, B10; UT.MA AL802, AL804; WRIGHT; WALTER WOODTRONIC NC, WOODTRONIC NC3, WOODTRONIC NC5; WEINIG Rondamat
TABLE
ORDER SAMPLE
| SHAPE | D * T * W * X * H |
| 14AA1 | 150 Ρ 12 Ρ 6 Ρ 6(3+3) Ρ 32 D126/D46 WH01/WS03 |
ANY OTHER SHAPE IS POSSIBLE TO PRODUCE BY REQUEST WITH DIAMOND OR CBN POWDER.
TABLE
GET A CONSULTATION AND ORDER A TOOL

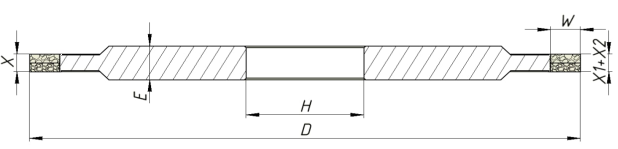

| D mm | W mm | X mm | E mm | H mm |
|---|---|---|---|---|
| 50 | 3-5 | 4 (2+2) | 6 | according to an order |
| 100 | 3-6 | 4 (2+2) | 8 | according to an order |
| 125 | 5-8 | 5 (2,5+2,5) | 10 | according to an order |
| 150 | 5-8 | 6 (3+3) | 10 | according to an order |
| 200 | 5-10 | 6 (3+3) | 15 | according to an order |
14Π1
